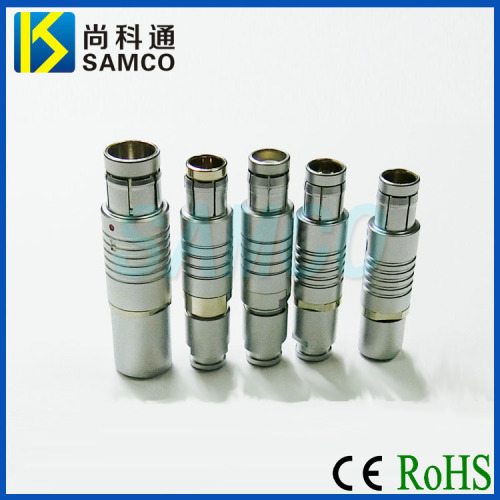

Component

1 Outer shell is made of copper alloy,chrome plated or nickel plated,

Outer shell may be made of stainless steel by special requirements.

2 Pin and jack are made of copper alloy, surface gold-plated.

3 Insulators was injection molding with high temperature, with good insulation properties of engineering plastics.

4 Sheath was injection molding with soft plastic,can be well protected cable.

5 Waterproof seal was molding with abrasion resistant rubber molding

Outer shell size

Available cores

0F 2,3,4,5,6,7,9

1F 2,3,4,5,6,7,8,10,14,16

Application

Communications, electronics, test and measurement, mechanical equipment, medical equipment and instrumentation industries; especially suitable for electrical connectivity of frequent connections to be separated, to be shielded instrumentation and device

Number Rules

Technical Parameters

Ambient temperature -50℃～＋125℃

Working current 1.5~~35A(related to cross-sectional area of contact )

Working voltage DC/200~~2.7KV,AC/150~~2KV(related to the distance from contact)

Test voltage (related to the distance from contact)

Contact resistance 2.5~~10mΩ

Insulation Resistance ≥5000M

Mechanical life  ≥5000 times(Connection and separation)
